Susumo Engineering at Vasai,Mumbai, Handling of Sand, Grit, Metal, Debris, Loading of Concrete Mixer, Dumper, Tractor Trolleys, Dozing/Levelling of Ground, Roads etc, Handling of Snow & Light sand, Fork Lift, Pallet Lifting, Waste/Debris Collection Bin, Excavating, Digging, Trenching, PipeLaying, Drilling In Ground For Poles, Fences & Plants, Crane, Lifting of Heavy Parts, Breaker For Rocks, Concrete etc, Cutting Weeds/Lawn,Cultivating, Tilling, Ploughing, Sweeping of Roads, Trailer Towing, Towing Truck, Tunneiling Machine
Online Enquiry for our site trucks

excavator

  • mahabali
      F5C-7
  • Overall Specifications Arm
    Engine 8 to 40 BHP Bucket Capacity 50 kg / 0.05 cu. mt.
    Starting System Self-start by ignition switch. Arm Radius 3.25 mts.
    Suspension Hydraulic Shock Absorbers &
    Leaf Springs on both Axles.
    Arm Movements Hydraulically with 4 Cylinders
    Chassis M.S. Weldable form ISMC-100 Section. Arm Slewing 65 degrees
    Clutch 11 inches dia. single dry type. Pumps 2 nos.
    Gear Box 3 Forward & 1 Reverse Operating Pressure 120 Bar
    Unladen weight 3500 Kgs. Control Valve 10-bank; Joy Stick Control for 4 -banks , Imported
    Ground Clearance 220 mm. Out Riggers 2 nos. in the front & 2 in the rear
    Turning Radius 3995 mm. Lateral Box Stroke 900 mm.
    Tyres Front & Rear - 7.00 X 15 Steering Front Axle, Worm & Roller type
    Road Speed Max - 13.5 Km / hr Brakes Foot Operated-Hydraulic for front & rear wheels, Hand brake for parking.
    Rear Axle Full Floating with Hypoid Gears. Control Car Type
        Dimensions Width : 1825mm; Length : 4350 mm
    Height : 3000 mm.

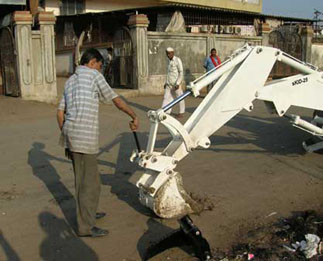

The arm can also be fitted on vehicles like Jeep, Tempo etc
