Susumo Engineering at Vasai,Mumbai, Handling of Sand, Grit, Metal, Debris, Loading of Concrete Mixer, Dumper, Tractor Trolleys, Dozing/Levelling of Ground, Roads etc, Handling of Snow & Light sand, Fork Lift, Pallet Lifting, Waste/Debris Collection Bin, Excavating, Digging, Trenching, PipeLaying, Drilling In Ground For Poles, Fences & Plants, Crane, Lifting of Heavy Parts, Breaker For Rocks, Concrete etc, Cutting Weeds/Lawn,Cultivating, Tilling, Ploughing, Sweeping of Roads, Trailer Towing, Towing Truck, Tunneiling Machine
Online Enquiry for our site trucks

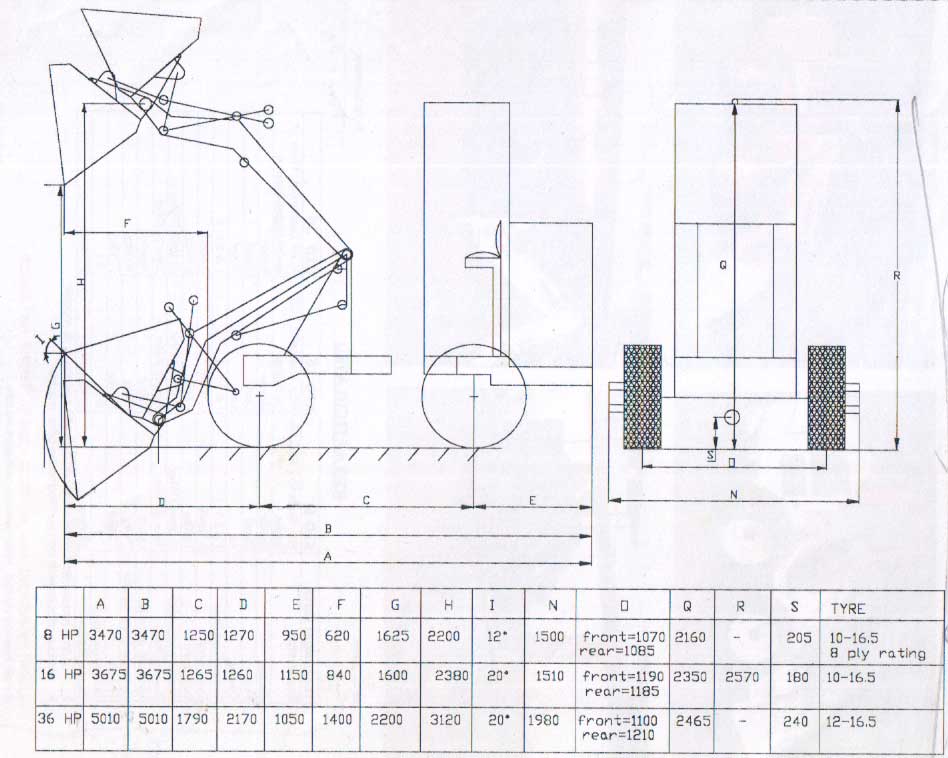

view dimension

LOADER - ARTICULATED

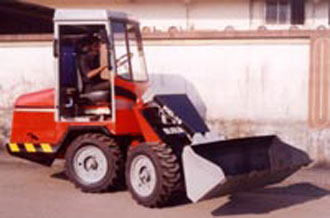

    • SteeredView

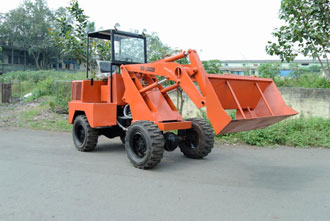

    Kid36GrabBottom
    Click here for Attachments for Loader Articulated
  • Technical Data KID 8 KID 16 KID 25 / 36
    Engine output 8hp;Single
    Cyl. Oil Engine
    16hp; Double
    Cyl. Oil Engine
    25 HP/36 HP
    Double Cyl, Simpson (Perkin)
    Water-Cooled Engine
    Starting Handle Handle Battery
    Fuel Diesel Diesel Diesel
    Cooling Air Air Water
    Transmission Ratio 1 & 2.5:1 1 & 2.5:1 1 & 2.5:1
    Drive Speed 0-9km/h 0-9km/h 0-9km/h
    Pulling Force 1000kg 1400kg 2300kg
    Auxiliary Hydraulics 21 1/min 175bar 31 1/min 175bar 41 1/min 200bar
    Steering Pump 71pm @ 70Bar 71pm @ 70Bar 71pm @ 70Bar
    Hydraulic Oil Cooler Option Option Standard
    Hydraulic lifting capacity 750kg 850kg 1000kg
    Weight 1200kg 1450kg 1700kg
    Volume (cu.mtr) 0.2 0.3 0.4
    Turning Radius 2300mm 2970mm 2775mm
